MAXY-LED Ground Path Lights DC 12V Pathway LED Lights

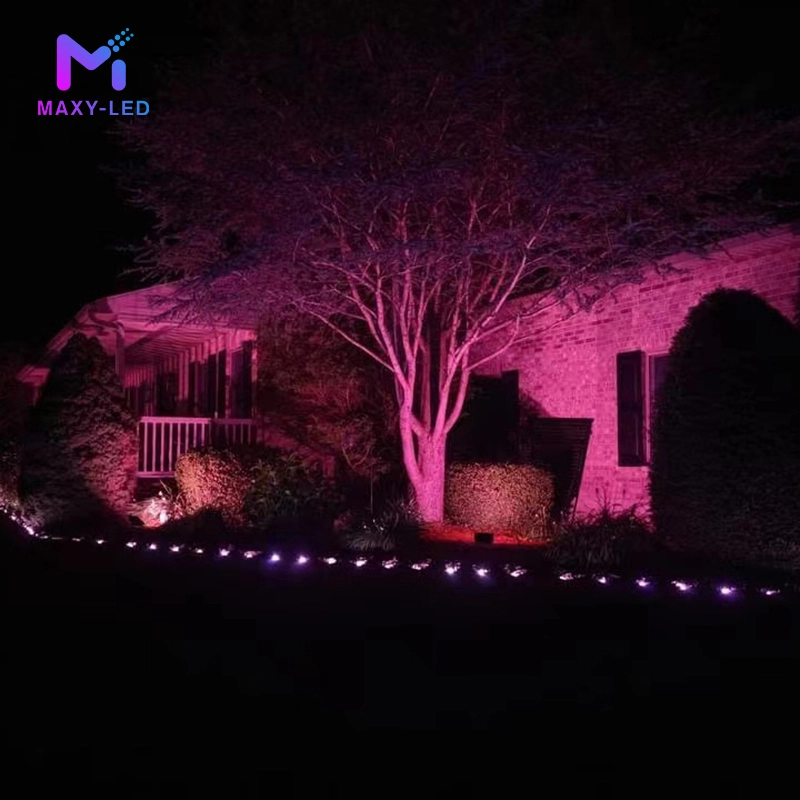

Illuminate your outdoor spaces with MAXY-LED 12V Ground Path Lights, designed to bring both beauty and functionality to your landscape. Perfect for lining driveways, sidewalks, or garden paths, these innovative lights will enhance the aesthetic appeal of your home while providing safe navigation at night.

ODM & OEM:

Support

Place of Origin:

China

Delivery Time::

5-7 days

MAQ:

50 Piece

Logistics:

Fedex, DHL, etc.

Certification:

CE, ROHS

Inquiry

Write a Review

Specification

Electrical parameters		Light source parameters
Rated working voltage	DC12V	LED qty	5050RGB*3
Rated power	6.36W	LED brand	£Epistar
Maximum current	545mA	Light source life	≥30000H
Wire specification	3*0.75mm²	Color	Smart RGB
PCS/ Strand	15pcs/strand	Optical parameters
Length(M)	4.5M (About 14.76ft)	Gray scale	8 Bit 256 levels
Control mode	TTLRGB	Wavelength	RGB(R:615-630nm G:525-545nm B:460-480nm)
Control chip	WS2811	LED beam	180°±10%
Pixel spacing	30cm	Others
Mechanical parameters		Oper temp	-20℃~+60℃
Material	PC/Copper	Storage temp	-40℃~+75℃
Wire color	Black	UV resistance	Yes
Net weight	45g	IP rated	IP67
Pigtails	Xconnect/waterproof connector	Individual addressable	Yes
Package	1 starnds/bag ，20bags/box ，19419470mm，20kg/box	Max lights before power injection	80pcs

Electrical parameters	• Rated working voltage	DC12V	Light source parameters	• LED Qty	5050RGB*3
	• Rated power	6.36W		• LED Brand	£Epistar
	• Maximum current	545mA		• Light source life	≥30000H
	• Wire specification	3*0.75mm²		• Color	Smart RGB
	• PCS/ Strand	15pcs/strand	Optical parameters	• Gray scale	8 Bit 256级
	• Length(M)	4.5M (About 14.76ft)		•Wavelength	RGB(R:615-630nm G:525-545nm B:460-480nm)
	• Control mode	TTLRGB		• LED Beam	180°±10%
	• Control chip	WS2811	Others	• Oper Temp	-20℃~+60℃
	• Pixel spacing	30cm		• Storage Temp	-40℃~+75℃
Mechanical parameters	• Material	PC/Copper		• UV resistance	Yes
	• Wire color	black		• IP rated	IP67
	• Net Weight	45g		• Individual addressable	Yes
	• Pigtails	Xconnect/waterproof connector		• Max lights before power injection	80pcs
	• Package	1 starnds/bag ，20bags/box ，19419470mm，20kg/box

feature

● Striking Illumination: Each strand features 15 vibrant WS2811 pixels, spaced 11.8 inches apart, ensuring consistent lighting along a 14.75-foot length.

● Easy Installation: Simply press the ground spikes onto the base of the LEDs until they click into place for a secure fit.

● Durable and Reliable: With an impressive lifespan of over 30,000 hours, these lights are designed to withstand the elements, featuring an IP67 rating for water and dust resistance.

● Versatile Control: Enjoy customizable lighting options with smart RBG technology, allowing you to create the perfect ambiance for any occasion.

● Energy Efficient: Operating at 12V DC and consuming only 6.36 watts, these lights are not only bright but also economical.

● Individually Addressable: Tailor your lighting display with individually addressable pixels, accommodating up to 80 lights before power injection is required.

● Multiple Connectivity Options: Available in both xConnect and Ray Wu versions, ensuring compatibility with your existing setups.

主图 3 (7)

详情图 1 (3)

When choosing landscape Flood Spot Light, it’s important to consider factors such as brightness, beam angle, and energy efficiency. Look for LED floodlights, which offer superior brightness and energy efficiency compared to traditional halogen or incandescent bulbs. LED floodlights are also more durable and long-lasting, making them a cost-effective choice for outdoor lighting applications.

Another important consideration when selecting landscape floodlights is the fixture’s waterproof rating. Since these lights will be exposed to the elements, it’s essential to choose fixtures that are designed to withstand rain, snow, and other weather conditions. Look for fixtures with an IP65 or higher rating to ensure maximum durability and reliability.

Installation of landscape floodlights is relatively straightforward, with many fixtures offering simple plug-and-play functionality. However, for more complex installations or larger projects, it may be advisable to consult with a professional landscaper or electrician to ensure proper placement and wiring.

Product Details

MAXY-LED light string use waterproof connectors, which are extremely rainproof and splash-proof, making them more suitable for outdoor use. MAXY-LED LED Point Source are made of advanced LEDs, which have high reliability, low power consumption and high brightness.

IMG_2173

IMG_2187

IMG_4609

IMG_4615

IMG_4616

IMG_4622

Product Installation Methods

Supports multiple installation methods, suitable for different applications.

安装方式

Application

Widely used for Outdoor advertising, Christmas decoration. Lighting Path and contour lighting Backlight for signage/ letters Architectural lights for Canopy, Corridor, Window, DIY Lights for home use Marine light, Task lighting, Replacement of Fluorescent light Decorative lights for holiday, event, show, exhibition.
